精密真空表尺寸图
本页为您提供一组精密真空表外形尺寸图,分别按 基型、轴向嵌装式、径向凸装式、径向嵌装式的不同安装结构型式进行外形尺寸标注,所标注的外形安装尺寸符合《GB/T 1227-2002》3.3.6条款规定。可作为设计、选型参考...

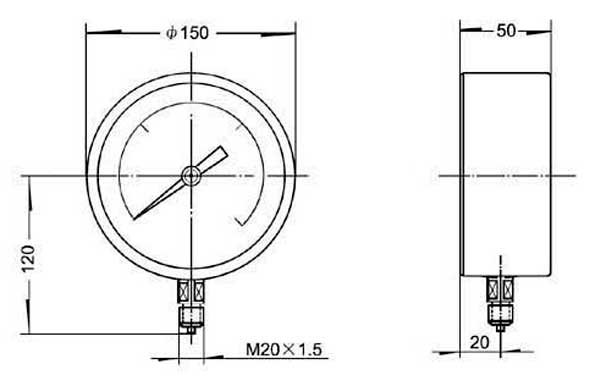

直接安装式(基型)精密真空表尺寸图
Direct mount (base type) precision vacuum gauge dimensions
(图一)基本型式【直接安装式】精密真空表尺寸

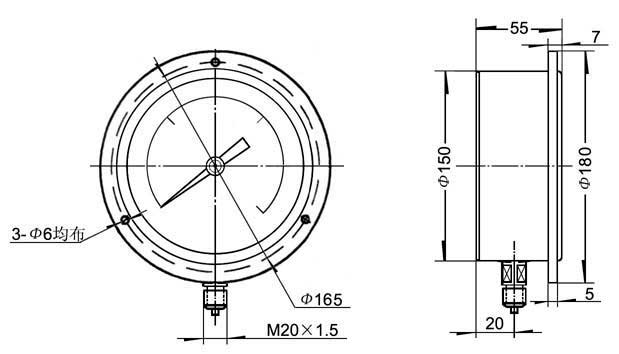

轴向嵌装式(轴向前带边)精密真空表尺寸图
Built-in axial direction (axial side of the former band) precision vacuum gauge dimensions
(图二)轴向前带边安装结构型式【轴向嵌装式】精密真空表尺寸
径向凸装式(径向后带边)精密真空表尺寸图
Radial-mounted convex (radial side after the band) precision vacuum gauge dimensions
(图三)径向后带边安装结构型式【径向凸装式】精密真空表尺寸

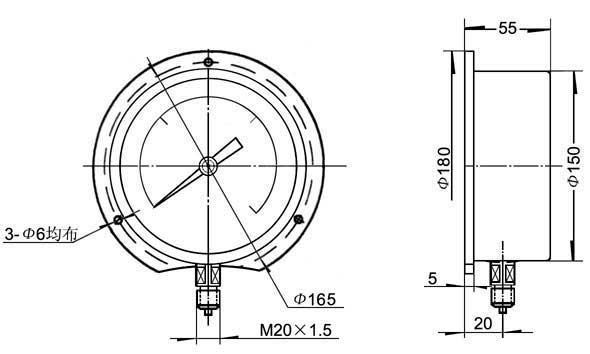

径向嵌装式(径向前带边)精密真空表尺寸图
Built-in radial (radial side of the former band) precision vacuum gauge dimensions
(图四)径向前带边安装结构型式【径向嵌装式】精密真空表尺寸
